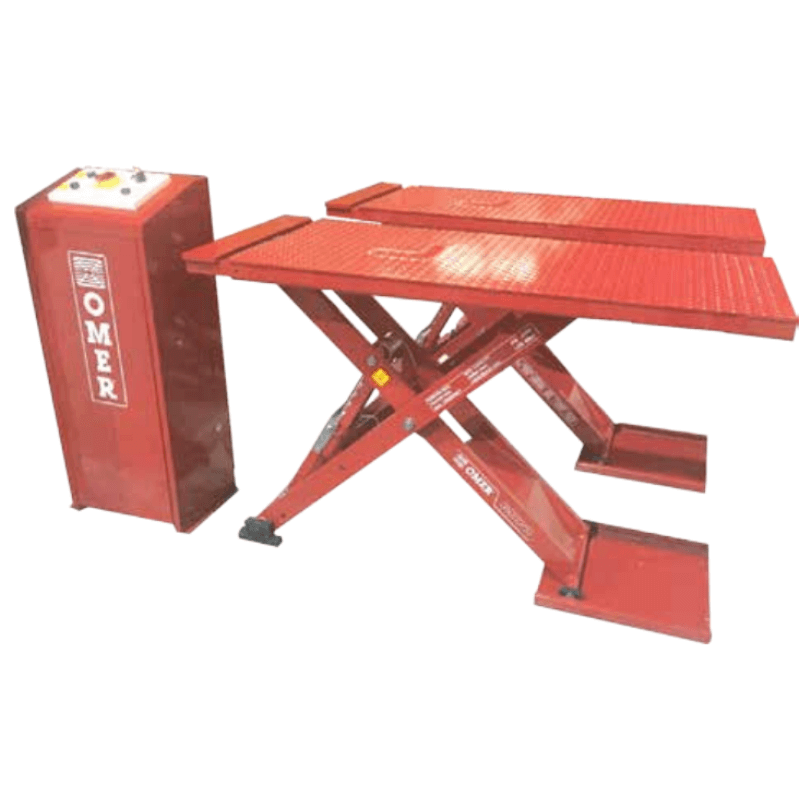

Omer MINI 30 6,600lb Mid Rise Scissor Lift

If your workshop needs a lift that’s equal parts compact and capable, the Omer MINI 30VX 6,600lb Mid-Rise Scissor Lift has you covered. Crafted in Italy and trusted by leading car manufacturers, this lift combines a robust 6,600 lb (3.0T) capacity with an ultra-sleek design, perfect for tight spaces. The pull-out deck extensions adjust effortlessly to handle a range of wheelbases, from zippy compacts to sturdy light trucks. And with open front and rear access, working underneath a vehicle has never been this hassle-free—or this efficient.

Safety meets simplicity with the MINI 30VX. A master-slave equalization system eliminates the need for electronic sensors, reducing maintenance costs while keeping your operations seamless. Five locking positions, a single-point air-cylinder lock release, and a low-profile ramp design ensure easy use and maximum stability. Need even more space? Opt for the flush-mount version to keep your shop floor neat and tidy. With a double-bake coat finish, durable components, and a quick 20-second lift time, this scissor lift is ready to elevate your workflow and then some.

MINI 30VX Specification

• Capacity: 6,600 lb / 3.0T
• Overall Width: 78-3/4" (2000mm)
• Overall Length: 86-1/2" (2200mm)
• Drive-Over Height: 4-1/8" (105mm)
• Lifting Height: 39-3/8" (1000mm); 42" (1066mm) with adapters
• Lifting Pad Dimensions: 61" to 82-1/2" (1550mm to 2100mm) Extended x 23-1/2" (597mm) wide
• Lifting Time: 20 seconds (raise/lower)
• Power Supply: 220V 60Hz 1 ph 23 amp 2HP / 1.5kW
• Operating Noise Level: <80 dB
• Locking Positions: 5
• Lock Release: Single-point air-cylinder release
• Weight: 1,540 lb / 700kg
• Finish: Double-bake coat
• Height Adapters: 2” (50mm) rubber-covered blocks
• Equalization System: Master/slave with single cylinder and dual chamber
• Available in Flush-Mount: Yes
• Country of Manufacture: Italy
• Approvals: UL/CSA/CE


MINI 30VX 6,600lb Mid Rise Scissor Lift Special Features

• Compact and Rugged Design: Optimized footprint (78-3/4” x 86-1/2”) saves space while supporting a best-in-class weight capacity.
• Versatile Applications: Ideal for compact cars and light-duty trucks with pull-out extensions for various wheelbase vehicles.
• Master-Slave Equalization System: Maintains level operation without electronic sensors or equalization valves.
• Low Maintenance: Features accessible grease fittings, no electronic sensors, and durable construction for reduced downtime.
• Built for Safety: Five locking positions ensure stability and eliminate accidental lowering risks.
• Unobstructed Access: Open front and rear construction for clear access to the vehicle’s underside.
• Quick Vehicle Spotting: Flat deck platform and spotting blocks enhance setup speed and productivity.
• Low Profile Ramps or Flush-Mount Options: Allows easy access for compact cars while handling heavier loads.
• Durable Finish: Double-bake coat finish for long-lasting protection against wear and tear.
• Quiet Operation: Operating noise level is less than 80 dB for a more comfortable working environment.
• Certified Quality: UL, CSA, and CE-approved for safety and performance compliance.

• Warranty: 1 Year Labor, 2 Year Parts
