Description

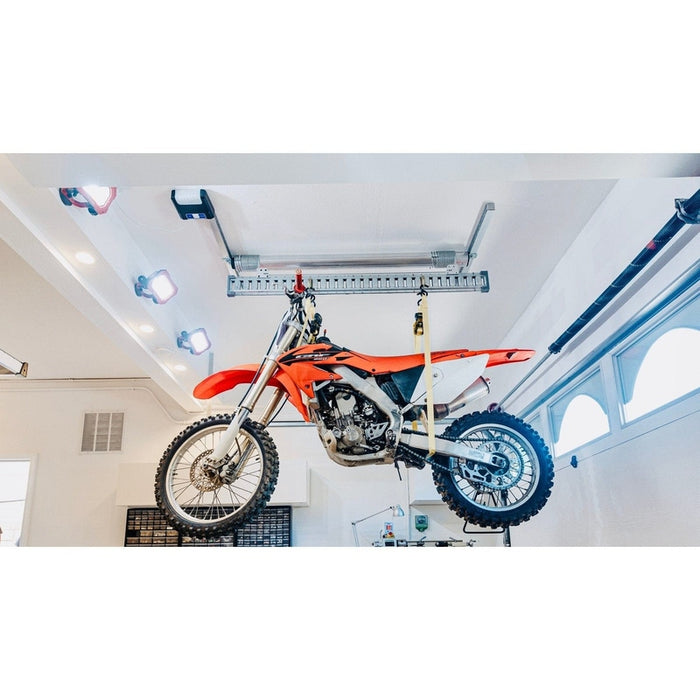

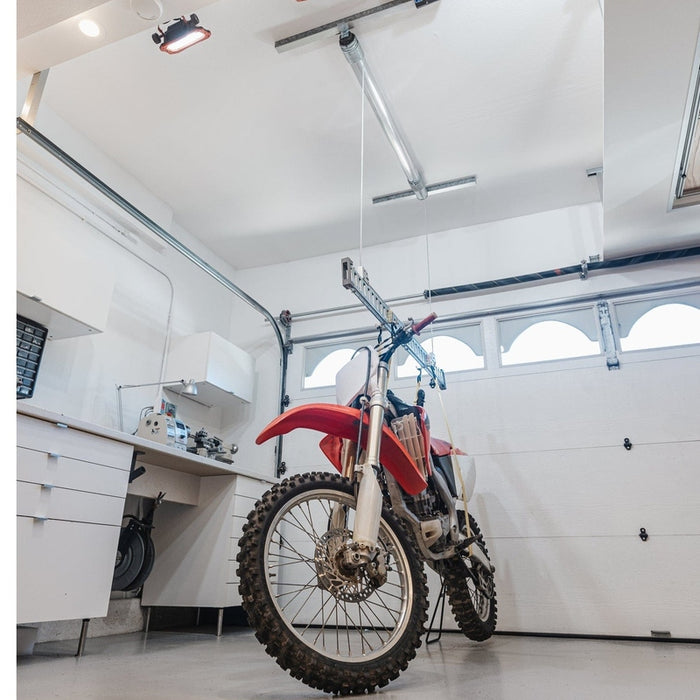

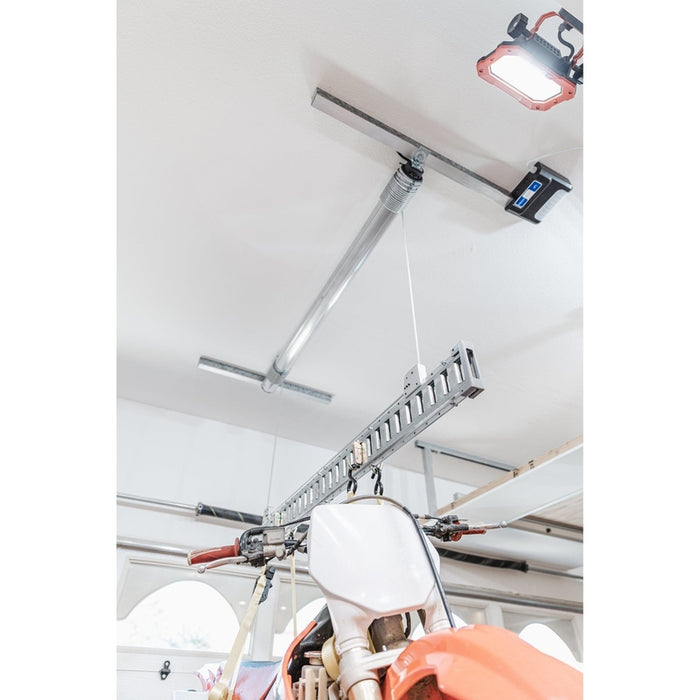

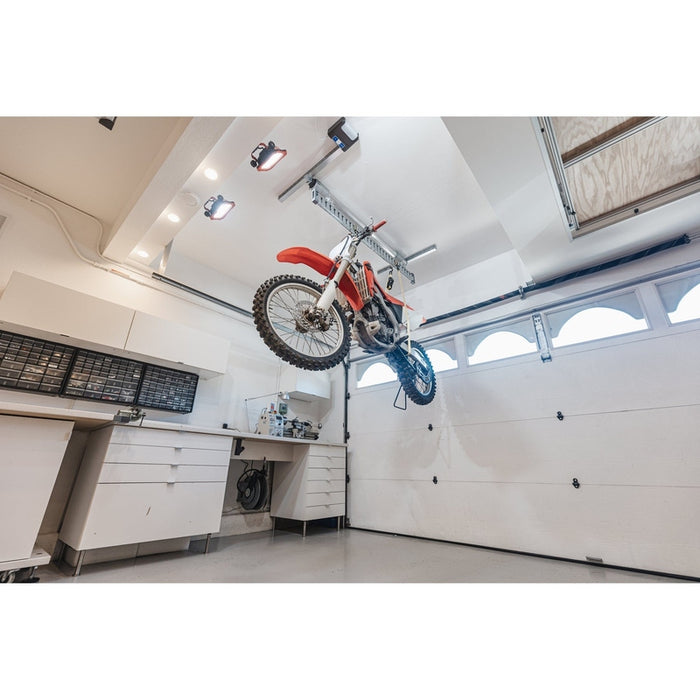

The Auxx-One 1400 is a powerful, motorized ceiling storage solution designed to lift and store your heaviest items safely and effortlessly. Built with industrial-grade materials, dual aircraft cables, and a galvanized steel E-Beam frame, this system eliminates the need for dangerous overhead lifting. With wireless remote control, customizable attachment points, and multiple safety features, the Auxx-One 1400 turns unused ceiling space into secure, efficient storage for bulky items.
Features
Heavy-Duty Storage Without the Heavy Lifting
Avoid the risk of reaching overhead for heavy items. This lift stores even the bulkiest items safely above your garage floor.
Wireless Remote Control
Raise and lower your platform effortlessly with the included remote.
Programmable stop points prevent the lift from hitting the floor or ceiling.
Built-In Safety
- Over-capacity protection
- Dual aircraft cables spaced wide to reduce twisting or spinning
- Robust, industrial-grade motor and frame
Customizable System
Compatible accessories include:
adjustable straps, carabiners, hooks, and extension frames—all designed to secure items and maintain balanced weight distribution.
E-Beam Lifting Frame (All-Purpose Track System)
Highlights

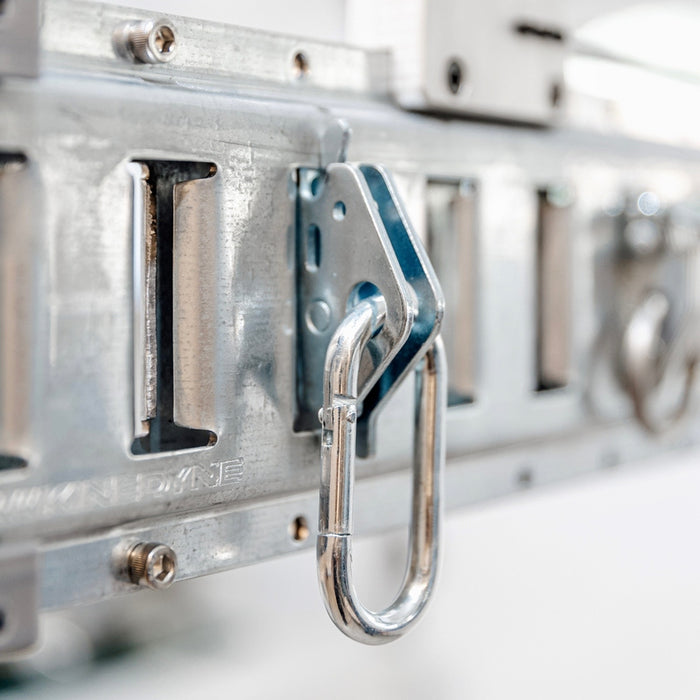

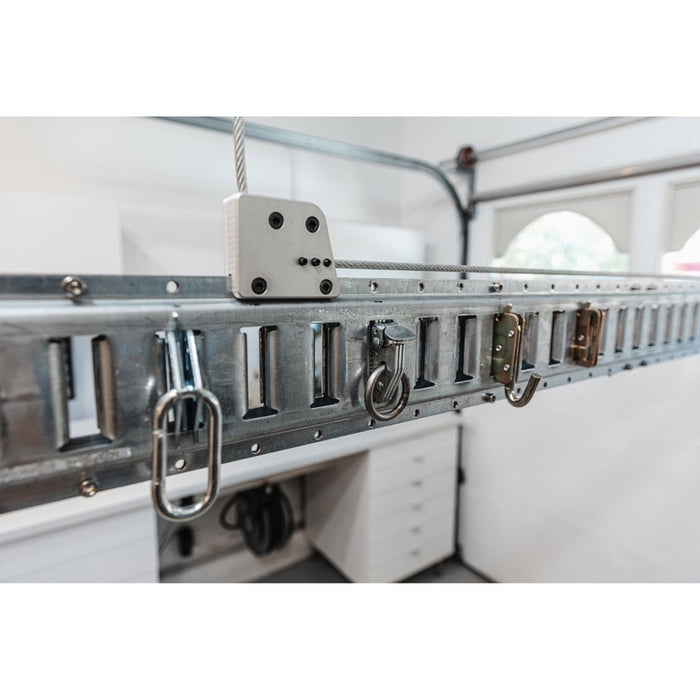

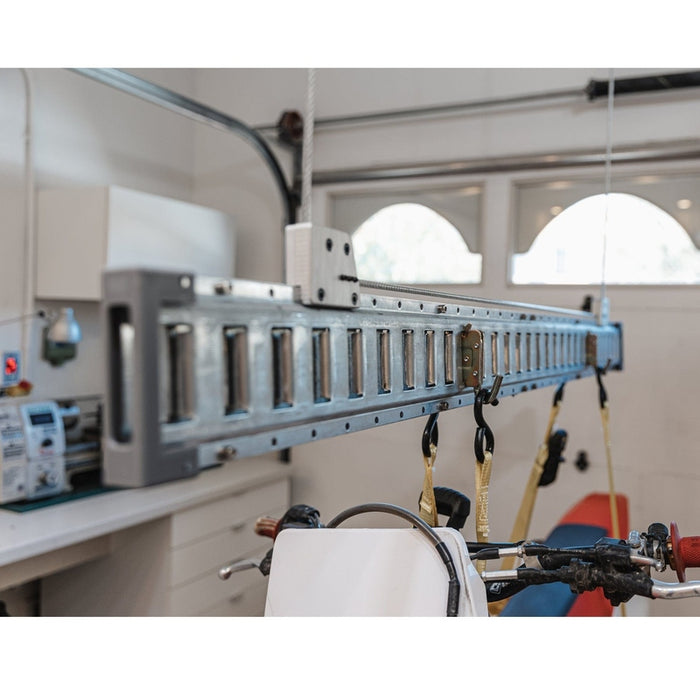

The E-Beam is a horizontal snap-in load-securing track made from corrosion-resistant galvanized steel. Inspired by cargo-control systems used in trucking, it offers maximum stability and multiple attachment points for secure storage.
Attachment Points
- Slot Spacing: 2 in on center
- Slot Height: 2-13/32 in
- Usable Sides: Both sides
- Attachment Style: Snap-in
E-Beam Dimensions
- Height: 5 in
- Length: 5 ft
- Thickness: 13/16 in
- Material: Galvanized steel
- Coating: Corrosion-resistant
Specifications
General Specs
- Model: Auxx-One 1400
- Lifting Capacity: Up to 400 lbs
- Max. Travel Distance: 22 ft¹
- Lift Speed: Approximately 30 seconds for 9 ft ceilings
Ceiling Support

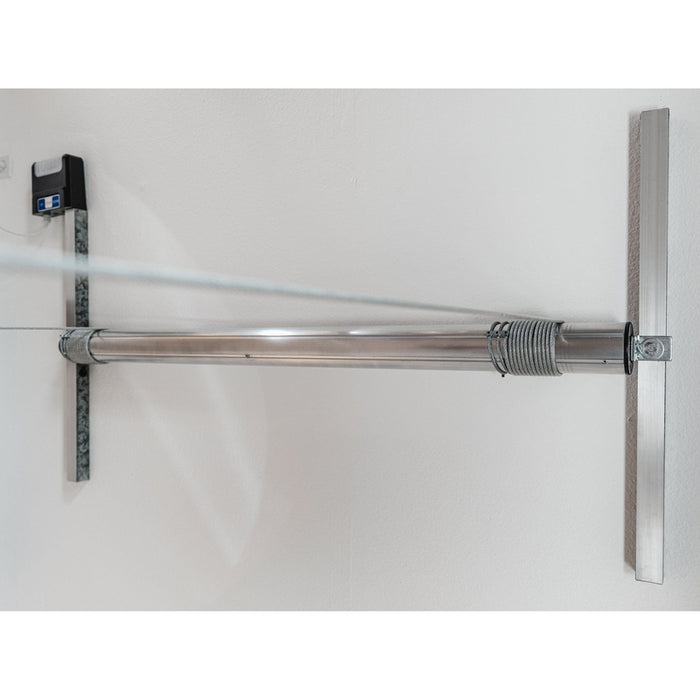

- Support Type: (2) 1 5/8" × 30" strut channels
- Fasteners: (6) 5/16" × 4" SPAX® lag bolts
- Cable Type: 3/16" vinyl-coated steel (7x19)
- Cable Strength²: 4,200 lbs
Operating Requirements
- Switch Voltage: 110V / 120V
- Transmitter Frequency: 433.92 MHz
- Power Cord: 10 ft, 16-gauge, NEMA 5-15
- Minimum Circuit Size: 15 amp
E-Beam Lifting Frame
- Height: 5 in
- Length: 5 ft
- Material: Galvanized steel
- Slot Spacing: 2 in on center
Motor
- Type: IP44 (T-Motor)
- Rated Power: 680 W
- Rated Current: 6.0 A
- Voltage / Phase: 100–120V AC / single phase
- Tube Diameter: 70 mm (2–3/4 in)
- Motor Speed: 13 rpm
- Duty Cycle³: 3 minutes on, 15 minutes off
What’s in the Box
- 1 Motor
- Controller
- Remote Control
- 2 C-Strut Channels
- E-Beam
- Mounting Hardware
Notes
- Auxx-One can be equipped with extended cable length for up to 22 ft travel distance.
- Ultimate tensile strength.
- Motors shut off automatically after 3 minutes of continuous operation and cool down within 15 minutes or less.
Installation and Warranty
An installation guide is included to help you set up your Auxx-One Lift.
Warranty Information
What Is Covered?
This warranty covers any defects in materials or workmanship resulting from personal, normal household use when operated according to the Owner’s Manual.
Warranty Duration
2 years from the date of purchase.
What We Will Do
- If your Auxx-Lift product is found to be defective:
- We will provide replacement parts or, at our discretion,
- Replace the product at no cost to you once the defective unit has been returned to Auxx-Lift.
Replacement parts may be new or reconditioned. If the entire product is replaced, it may be replaced with a new or reconditioned unit of the same or a similar design.
How to Obtain Warranty Service
To receive warranty service:
- Provide proof of purchase (date and place of purchase).
- Our trained representatives will help diagnose the issue.
- We will arrange to send necessary replacement parts or a replacement product after the defective unit is returned to Auxx-Lift.
What Is Not Covered
This warranty does not cover:
- Installation or commercial use
- Damage from accidents or shipping
- Alterations, misuse, abuse, or improper maintenance
- Unauthorized repairs or modifications
- Attachments not included with the product
- Staples through wiring, pinched/broken wires, or broken cables
- Power outages or use of extension cords
- Missing or damaged parts from discounted, clearance, final sale, or taped cartons
- Damage from fire, flood, or acts of God
- Failure to follow the Owner’s Manual
Customer is responsible for shipping costs on warranty replacements.
