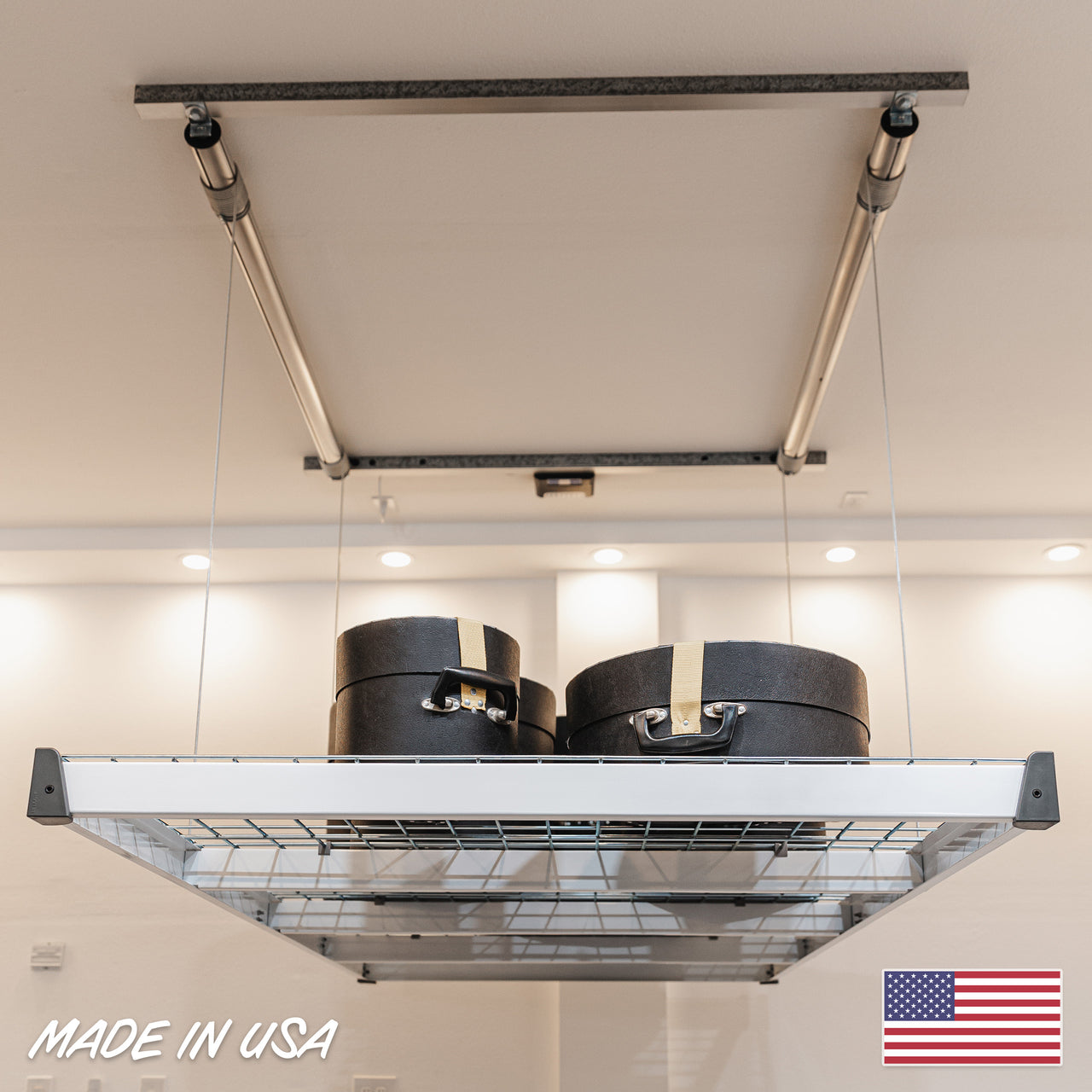

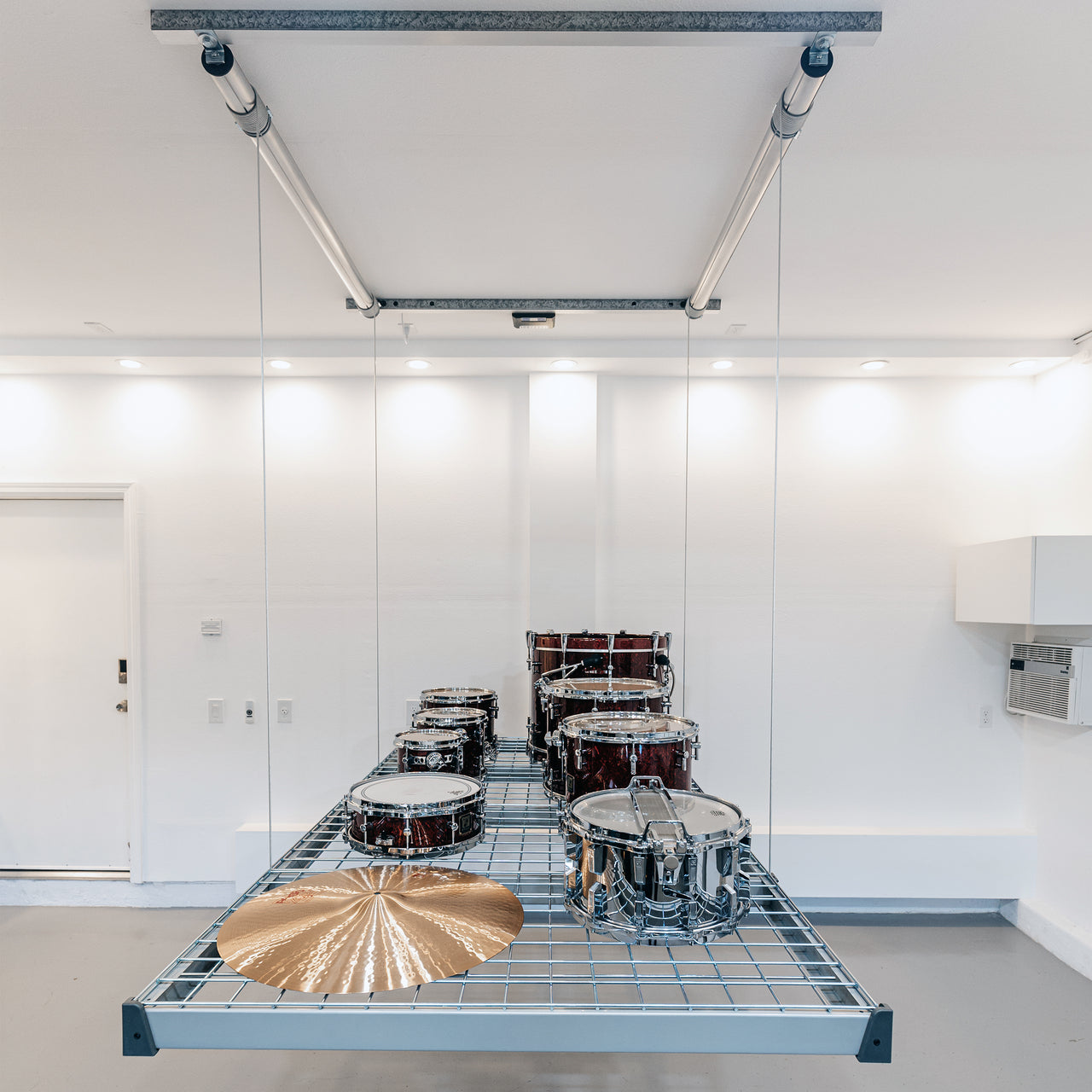

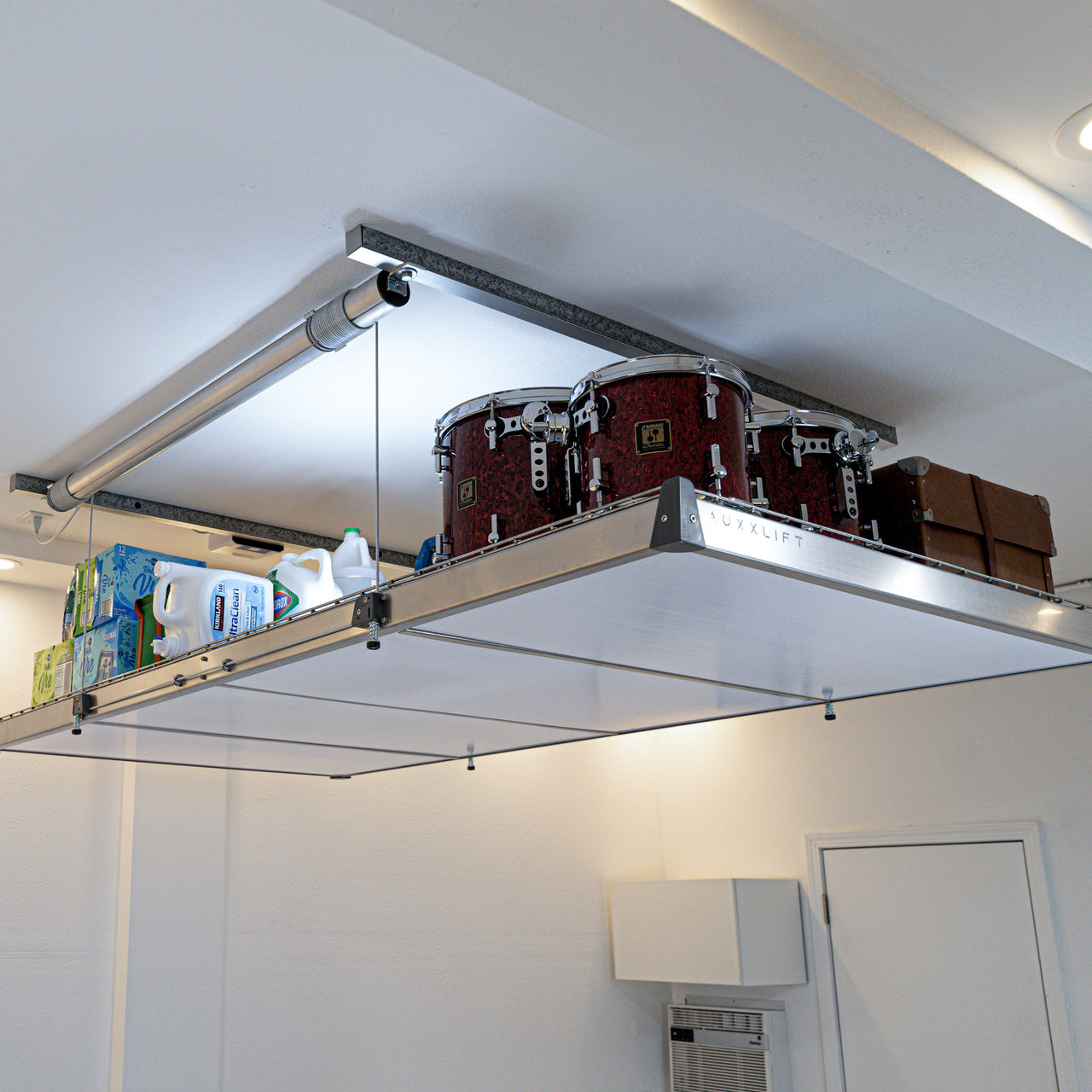

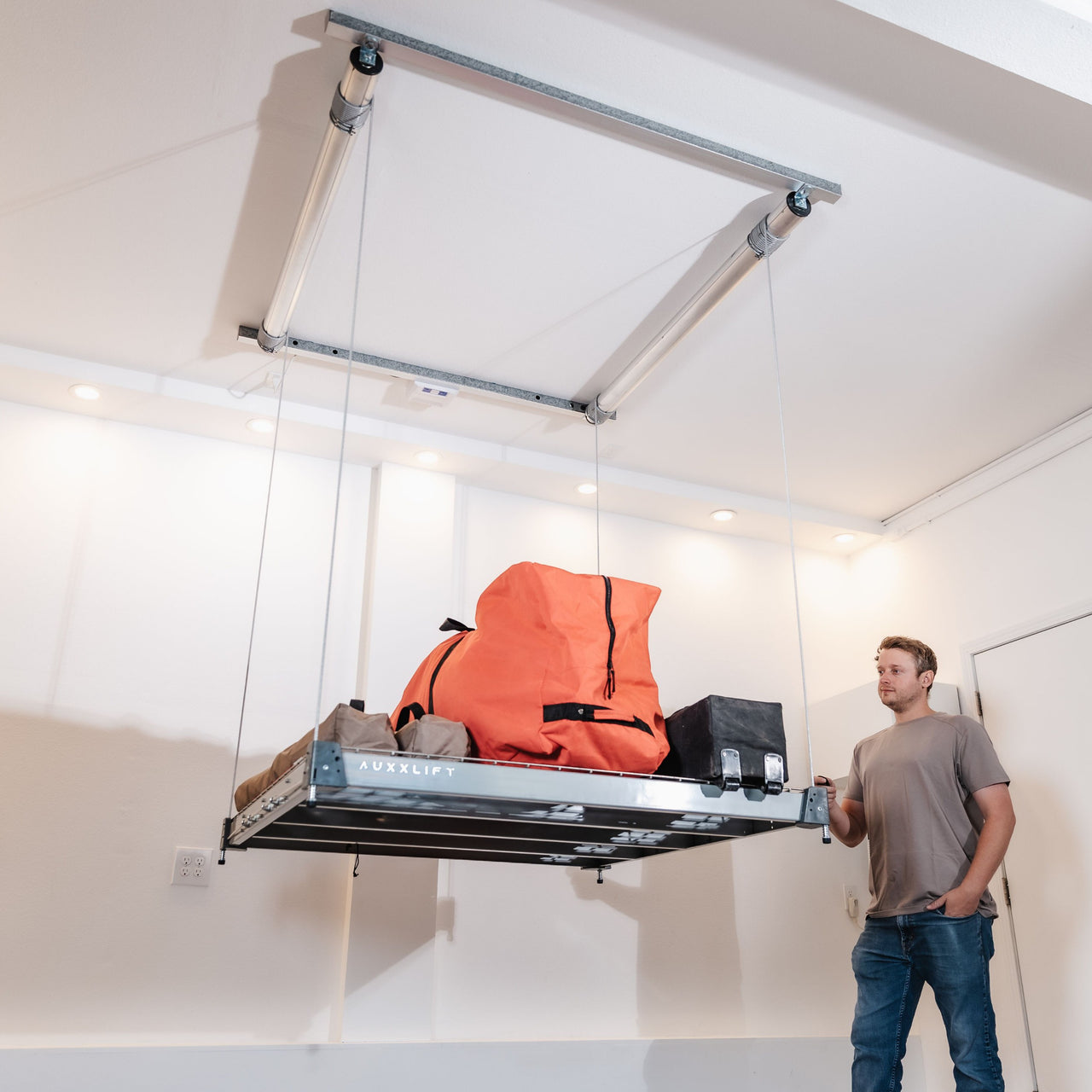

Auxx-Lift – Motorized Overhead Garage Storage Platform

The Auxx-Lift Ceiling Storage Lift

Simplify Storage with the Push of a Button

Transform your garage into an organized, clutter-free space with the Auxx-Lift—your ultimate ceiling storage solution designed for convenience, safety, and long-lasting durability. From tools and totes to sports equipment and seasonal décor, the Auxx-Lift makes overhead storage effortless.

Why Choose Auxx-Lift?

Heavy-Duty Lifting Power

• Lift up to 600 lbs with industrial-grade steel aircraft cables
• Engineered for stable, reliable performance—even with your heaviest items
• Equipped with premium SPAX® fasteners
• Proudly Made in the USA


Wireless Control at Your Fingertips

Operate your storage lift safely and effortlessly with a wireless remote control.

Smart Safety Features

• Auto High & Low Points: Set programmable stopping limits to prevent hitting the ceiling or floor
• Auto-Stop Safety: Automatically halts the lift if the remote loses connection or the battery dies
• Active-Press Technology: Lift only moves when a button is deliberately held—no accidental activation

Quick & Easy Installation

Installing the Auxx-Lift is similar to mounting an automatic garage door opener.
Clear instructions and optional professional installers make setup fast and hassle-free.

Installation Video Guide

Installation Documents

Auxx Lift Installation Guide

Auxx Lift Adjustment Guide

Certified for Safety

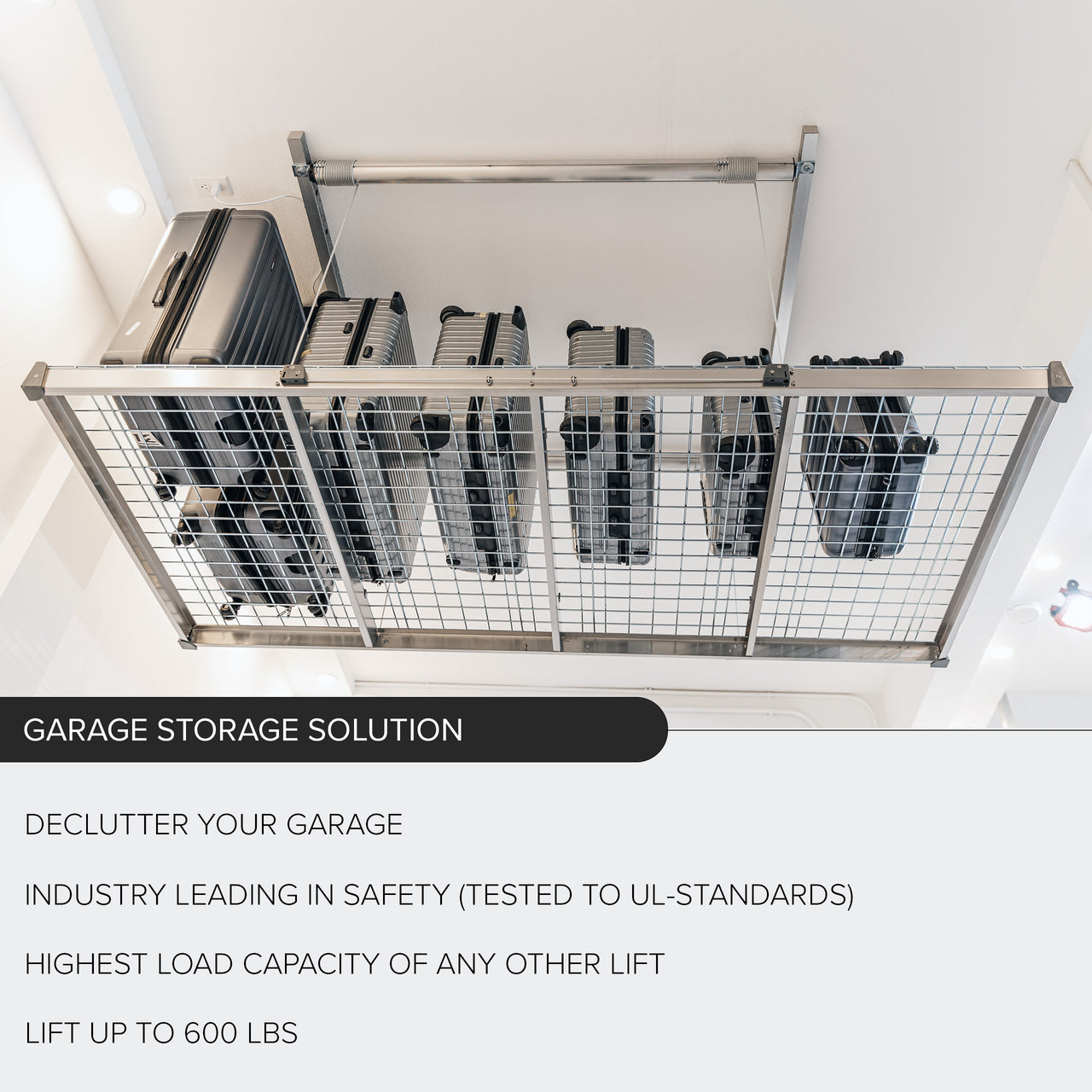

The Auxx-Lift is the only overhead storage lift tested to UL standards, ensuring industry-leading safety and reliability.

Specifications

General Specs

• Models: Auxx-Lift 1400 / Auxx-Lift 1600
• Lifting Capacity:
  • Up to 400 lbs (1400 Model)
  • Up to 600 lbs (1600 Model)
• Max Travel Distance: 13'-6" (extendable to 18'-0")
• Minimum Stored Height: 8 in
• Speed: Approx. 30 seconds for 9 ft ceilings

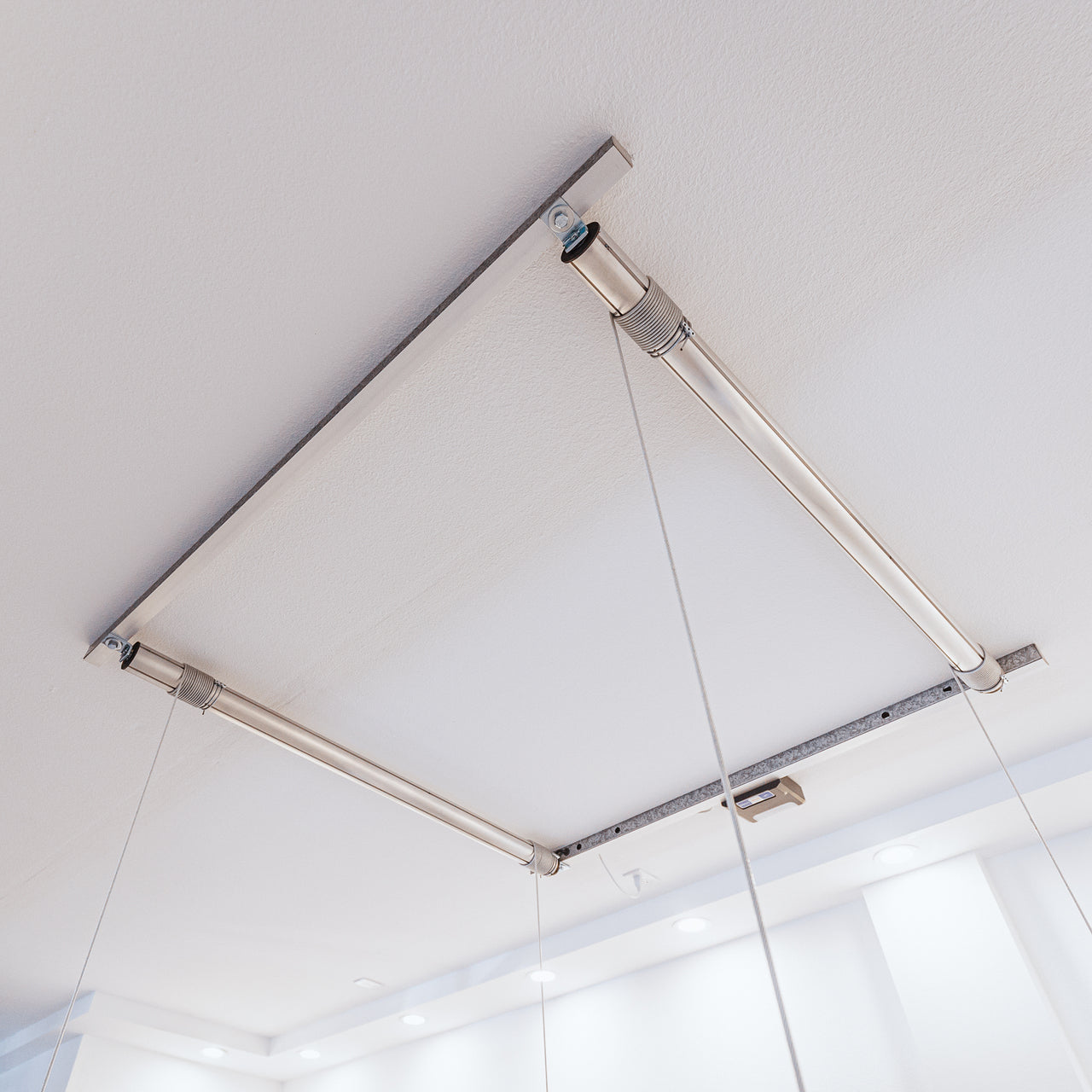

Ceiling Support

• Strut Channels: (2) 1 5/8" × 60"
• Fasteners: (8) 5/16" × 4" SPAX® lag bolts

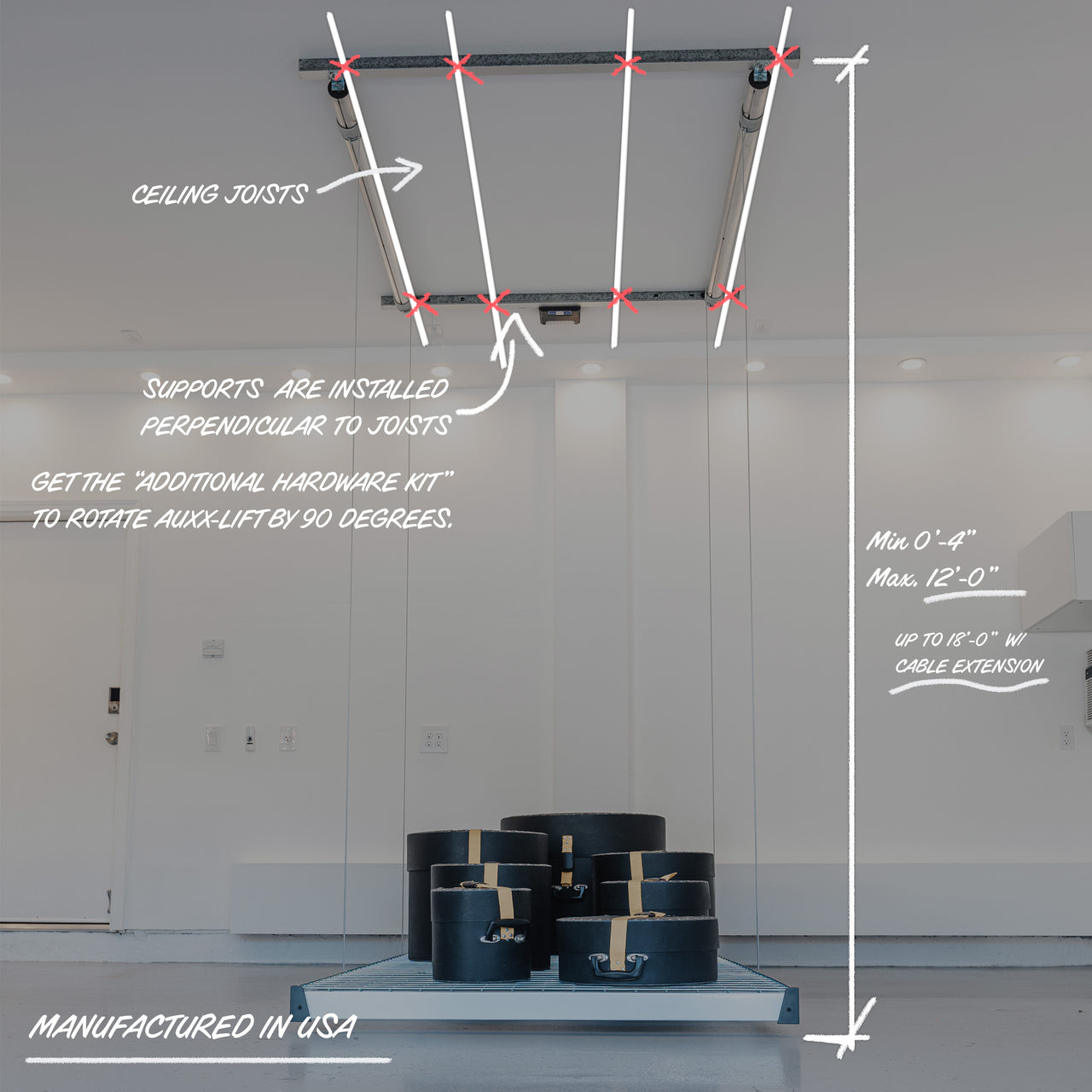

• Mounting Footprint: 5' × 5', spanning 3 joists/rafters

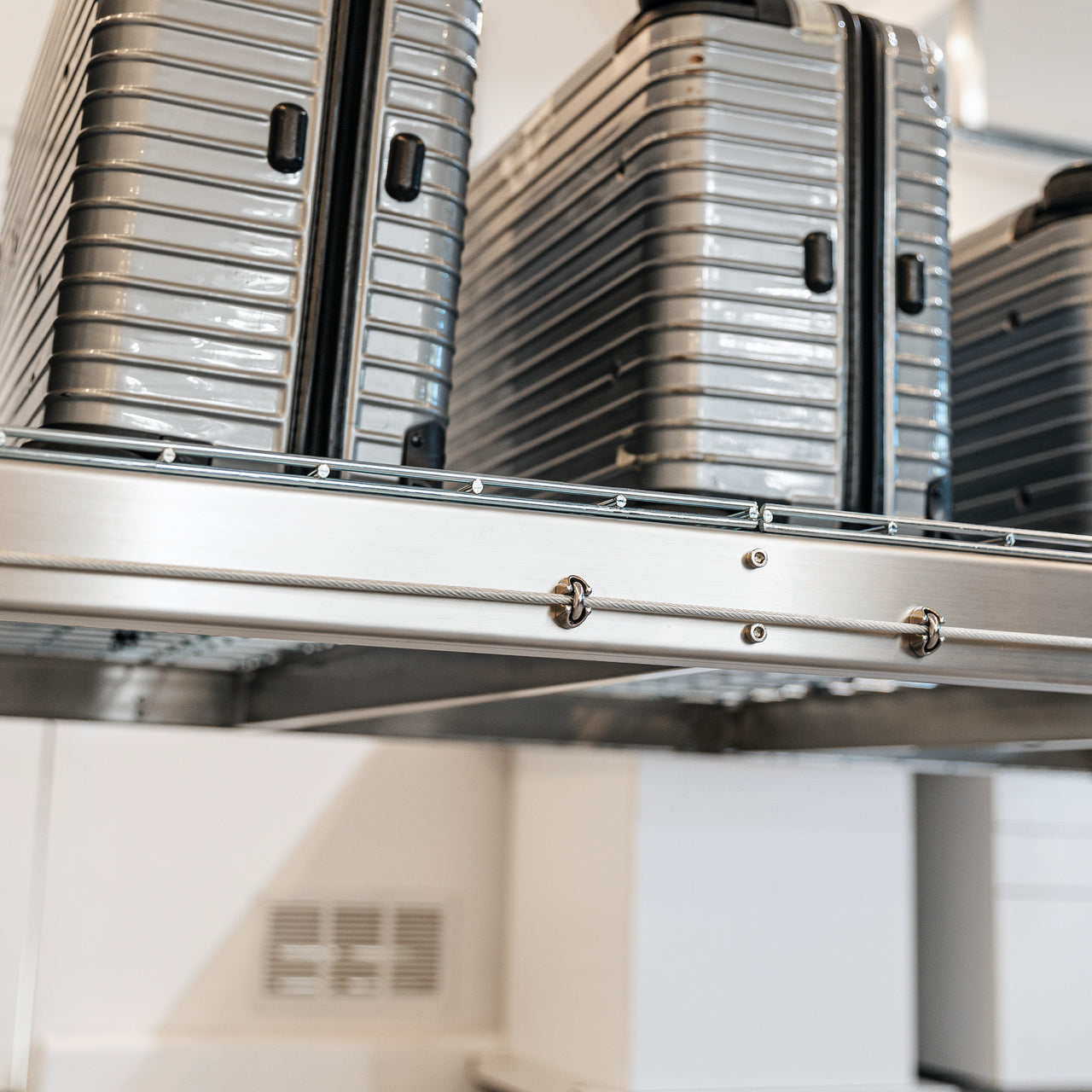

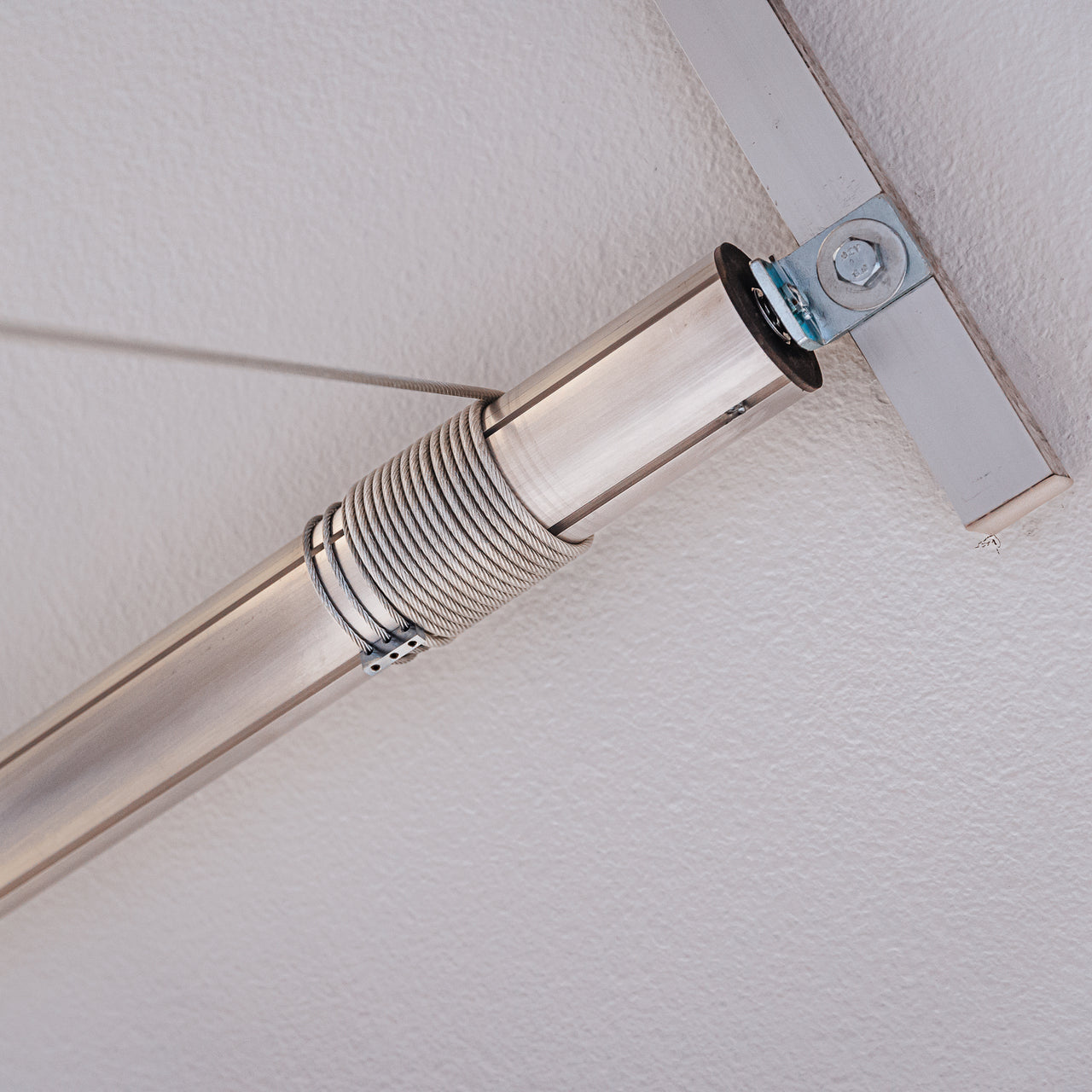

• Cables:
  • 1/8" vinyl-coated 7x19 steel (400 lbs model)
  • 3/16" vinyl-coated 7x19 steel (600 lbs model)
• Cable Strength:
  • 2,000 lbs (400 lbs model)
  • 4,200 lbs (600 lbs model)

Operating Requirements

• Switch Voltage: 110V / 120V
• Remote Frequency: 433.92 MHz
• Power Cord: 10 ft, 16-gauge, NEMA 5-15 plug
• Minimum Circuit: Standard 15-amp household circuit

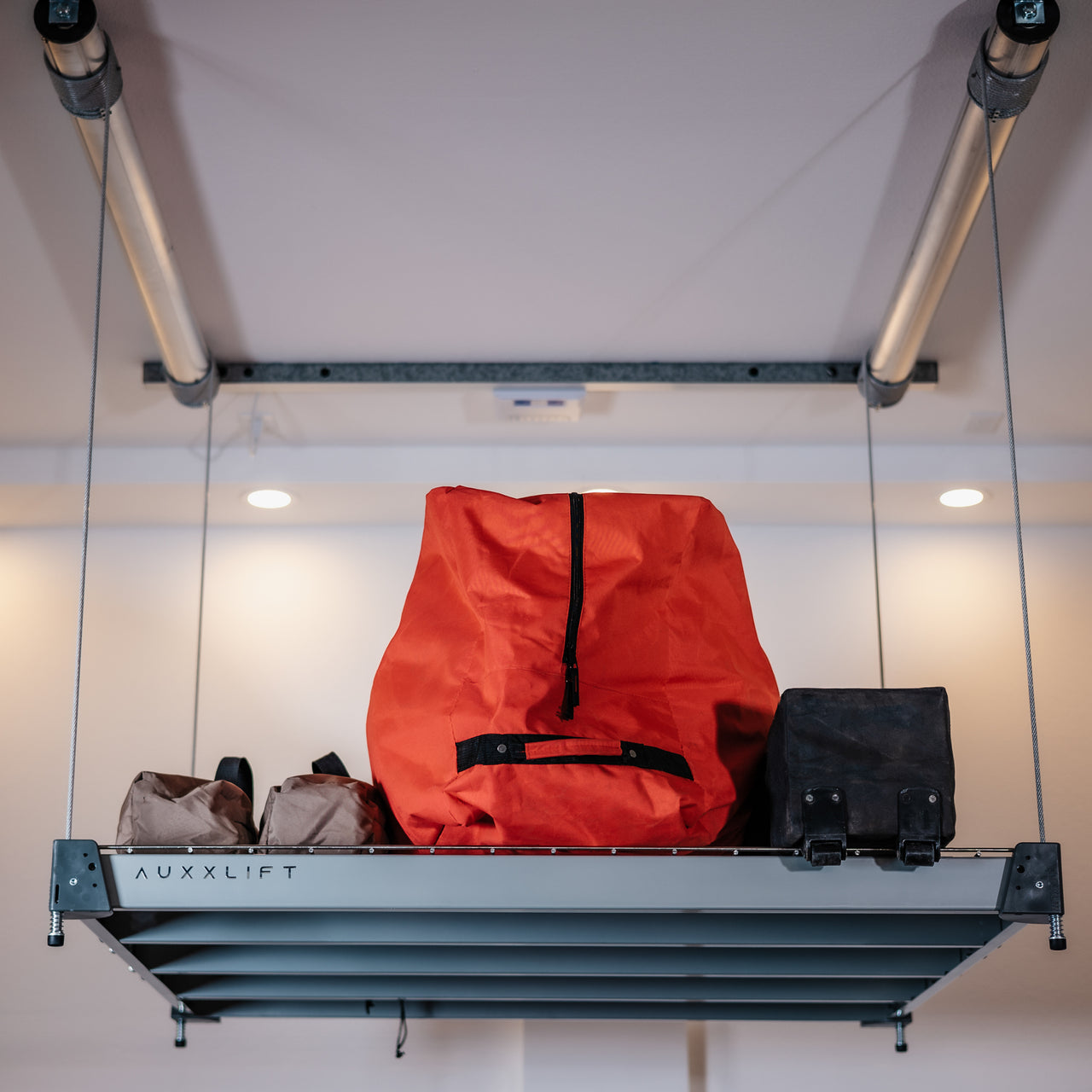

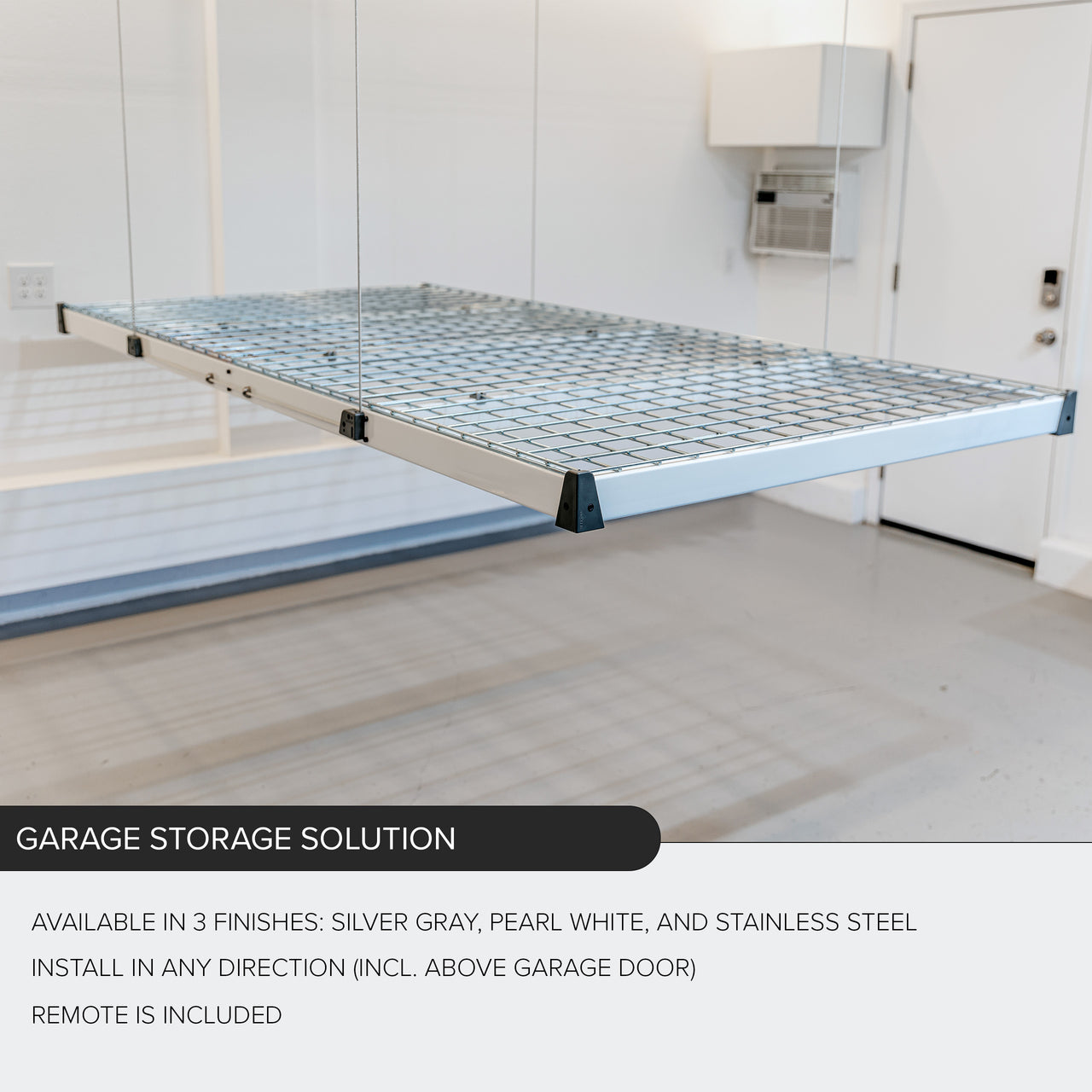

Platform Specs

• Platform Thickness: 2.5 in
• Support Frame: 15-gauge steel C-channels
• Surface Material: Galvanized 3×3 wire mesh (4-gauge)

Motors

• Type: IP44 T-Motor
• Rated Power:
  • 235 W (400 lbs model)
  • 680 W (600 lbs model)
• Rated Current:
  • 2.2 A (400 lbs model)
  • 6.0 A (600 lbs model)
• Voltage / Phase: 100–120V AC / Single phase
• Tube Diameter:
  • 70 mm (400 lbs model)
  • 85 mm (600 lbs model)
• Motor Speed:
  • 13 rpm (400 lbs model)
  • 11 rpm (600 lbs model)
• Duty Cycle: 3 minutes on, 15 minutes off

Size & Weight

• Platform Sizes:
  • 3 ft × 6 ft
  • 3 ft × 8 ft
  • 4 ft × 6 ft
  • 4 ft × 8 ft
• Product Weight: 128 lbs

What’s in the Box

• 2 Motors
• Controller
• Wireless Remote
• 2 C-Strut Channels
• Storage Platform
• Mounting Hardware


FAQs

Can I install the Auxx-Lift myself?

Yes. Installation is similar to setting up an automatic garage door opener.
 You’ll work from a ladder, locate your ceiling joists, and mount two support rails.
 A professional installer typically completes installation in about 2 hours.

How was the Auxx-Lift developed?

The Auxx-Lift Series is the result of 8 years of engineering, extensive field testing, and compliance with UL safety standards.
It was designed to eliminate the weaknesses found in other storage lifts, delivering a system that is:

• Safer
• More intuitive
• Better designed
• Built with higher-quality materials
• Offered at the best possible price
