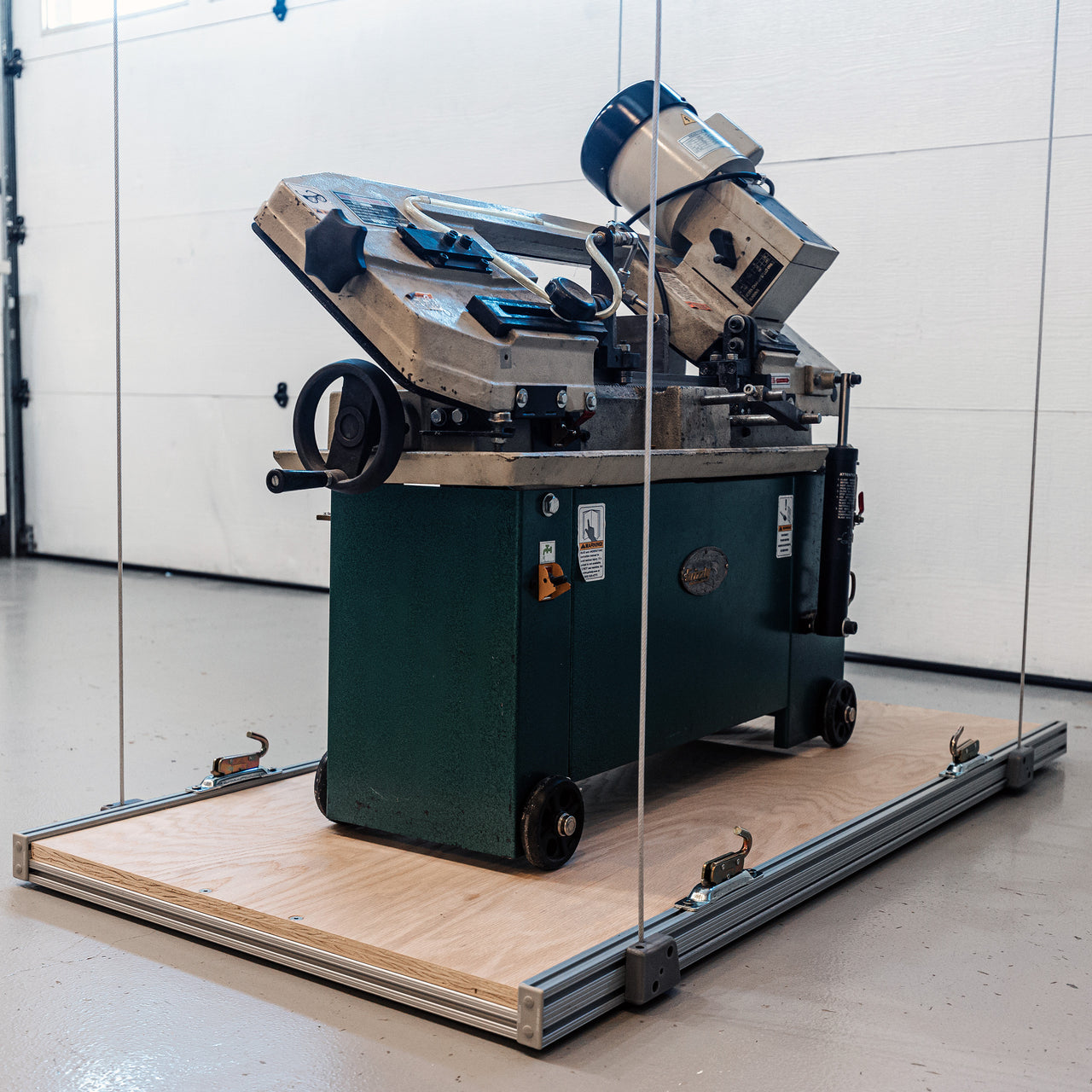

The Attic Lift is a motorized lifting platform designed to maximize your garage’s overhead storage and provide safe, effortless access to your attic. Available in multiple sizes, colors, and lifting capacities, the system can be customized to fit your space and storage needs. With powerful dual motors, self-leveling technology, and no bulky rails or posts, this lift provides a clean, efficient way to store heavy items without risking injury.
Key Features
✔ Best Value on the Market
Lifts up to 400 lbs of storage safely into your attic.
No need for traditional posts or rails that clutter your attic space.
✔ Easy Installation
Only requires attaching two motors and two strut channels to the attic floor.
Ideal for DIY installation or a handyman-assisted setup.
✔ New Adjustable Ceiling Frame
Includes a fully adjustable frame that seals the ceiling opening.
Compatible with attic floor systems ranging from 24" to 216".
✔ Large, Practical Platform Sizes

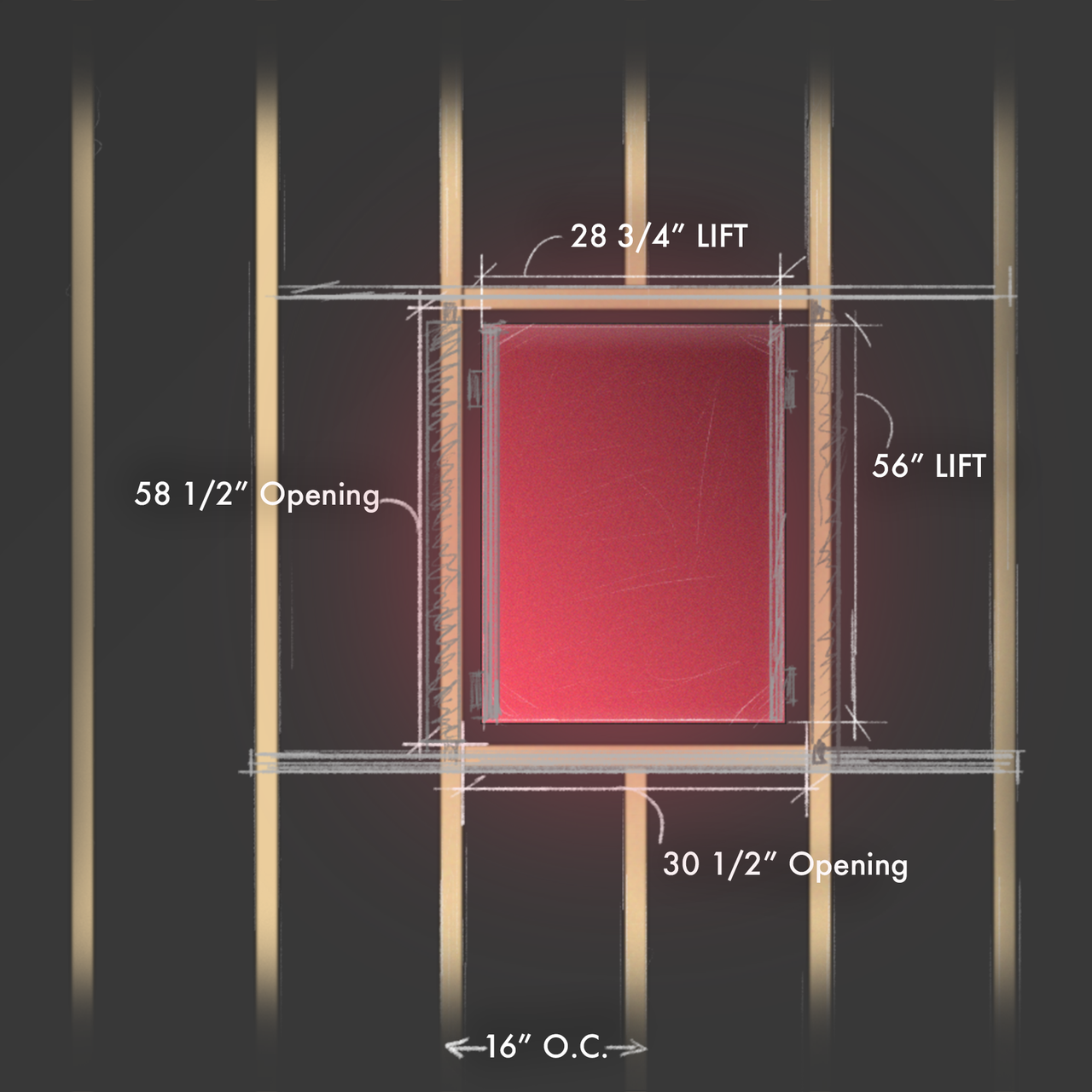

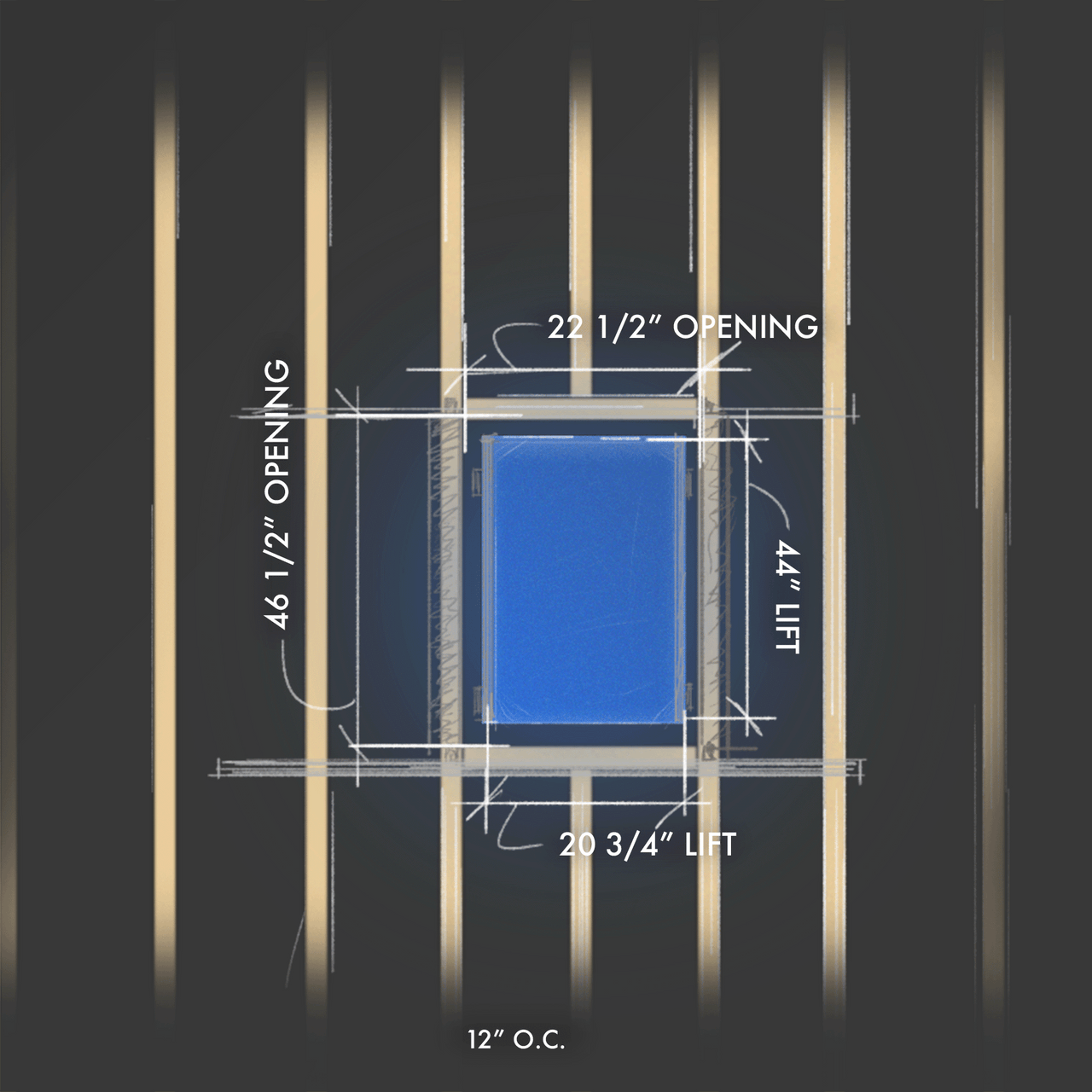

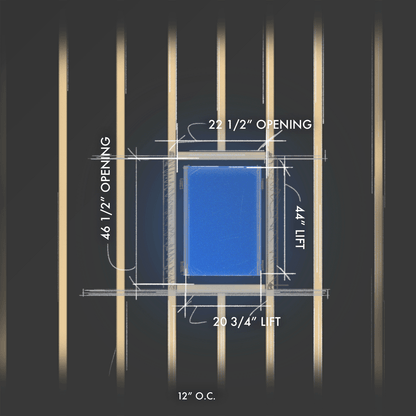

Platform options: 20.75" x 44" or 28.75" x 56"
Ceiling cutout: 22.5" x 46.5" or 30.5" x 58.5"
Why Choose the Attic Lift?
No Heavy Lifting
Avoid dangerous trips up and down pull-down attic stairs. Move bulky items—boxes, holiday décor, storage bins, tools—directly from your garage floor to your attic safely.

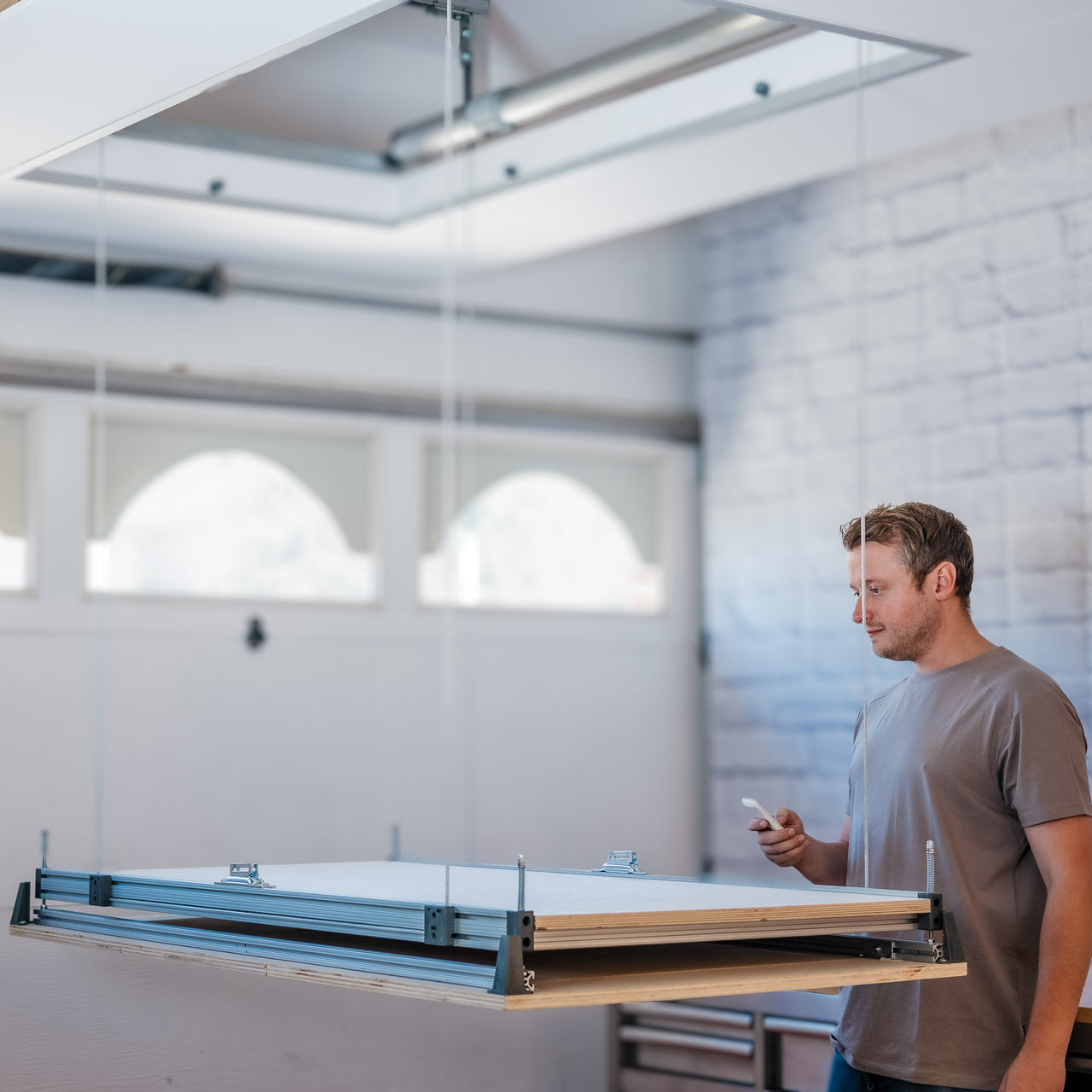

Wireless Remote Control
Easily raise and lower the platform using the included wireless remote. Programmable stopping points help prevent the lift from hitting the ceiling or floor.
Safety First
The Attic Lift is engineered with multiple built-in safety systems:
Self-Leveling Platform: Controller automatically adjusts cable speeds to keep the platform balanced.
Overload Protection: Lift monitors load weight and prevents operation if over capacity.
Dual Synchronized Motors: Two tubular motors work together to keep the platform perfectly level.
Secure Mounting: Motors and strut channels anchor securely to attic floor joists/rafters using lag bolts.
Built for Strength & Durability
Powerful Motors
IP44 tubular motors
Runs on standard 100–120V household power
Draws only 2.2–2.3 amps
Duty cycle: 3 minutes on / 15 minutes off
Aircraft-Grade Steel Cables
Four vinyl-coated, hot-dipped galvanized 7x19 steel cables
Each cable is made of 133 steel wires
Cable strength: 2,000 lbs
Vinyl coating protects hands and seals in lubrication for longer life
Vertical Travel Options
Choose the lift that fits your ceiling height:
13 ft, 16 ft, or 20 ft vertical travel
Specifications
General Specs
Model: Attic-Lift 1400
Lifting Capacity: Up to 400 lbs
Max Travel Distance: Up to 16 ft (other versions available with 13 ft & 20 ft)
Installing the Attic Lift is straightforward and beginner-friendly. Follow the step-by-step manual or watch our installation videos for guidance. If you're unsure at any stage, a local handyman can assist. Before installing, always read the entire user manual to ensure proper and safe setup.
